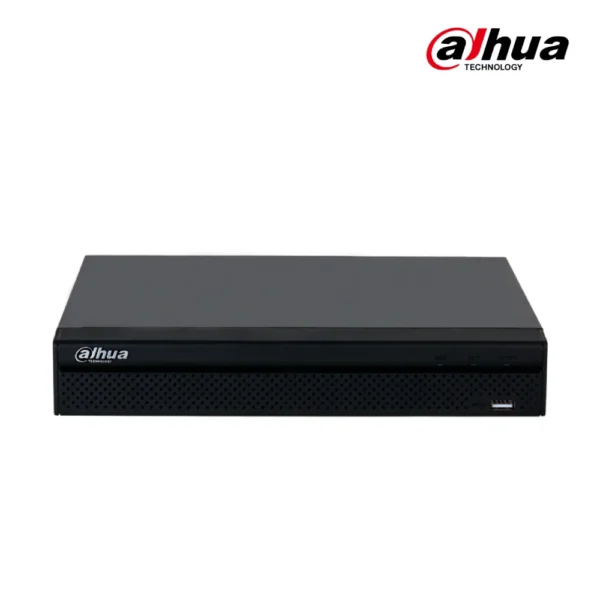

Grabador de Video en Red Compacto NVR4116HS-4KS2/L 1U 1HDD 16 canales

Salida de video VGA, HDMI (4K)
Interfaz Web/GUI local
Resolución 8MP, 6MP, 5MP, 4MP, 3MP
Visualización Multi-pantalla (1,4,8,9,16)
Disco Duro 1xSATA hasta 10TB

S/ 450.00

Envíos a Lima

24 horas

Envíos a Provincia

2 a 3 días hábiles

Retiro en Tienda

Tienda física

Garantía 1 Año

En todos los productos

Especificaciones

System
Main Processor Industrial-grade embedded processor
OS Embedded Linux
Operation Interface Web/operating in local GUI
Perimeter Protection by Camera
Performance 8 channels
AI Search Search for pictures by channel, time and event type
Face Detection by Camera
Performance 4 channels
Face Attributes 6 attributes: Gender, age, glasses, expression, mouth mask, and beard
AI Search Search for pictures by channel, time and face attributes
SMD Plus by Camera
Performance 12 channels
AI Search Search by target classification (human, vehicle)
Video
Access Channel 16
Network Bandwidth Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability 8 × 1080p@30 fps
Video Output 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
Multi-screen Display 1, 4, 8, 9, 16 views
Third-party Camera Access ONVIF; RTSP
Compression
Video Smart H.265/H.265/Smart H.264/H.264/MJPEG
Audio PCM/G711A/G711U/G726/AAC
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access Android; iOS
Interoperability ONVIF(profile T/S/G); CGI; SDK
Browser Chrome; IE9 or later; firefox
Record Playback
Multi-channel Playback Up to 16 channels for playback
Record Mode Manual record; alarm recording; SMD recording; smart recording
Storage Local HDD; network
Backup USB storage device
Playback Function 1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off
Storage
Disk Group Yes
Alarm
General Alarm Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly Alarm Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
Alarm Linkage Recording, snapshot, audio, buzzer, log, preset, and email

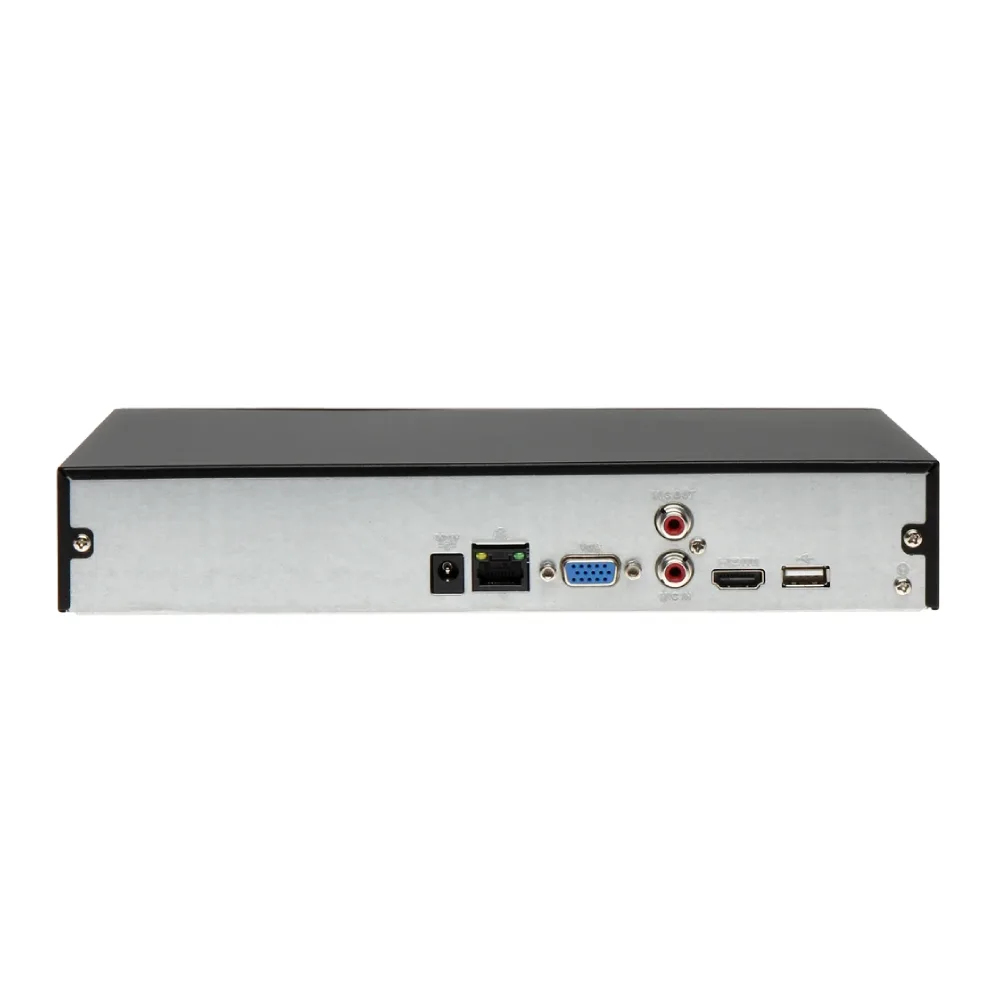

External Port
Audio Input 1 × RCA input
Audio Output 1 × RCA output
HDD 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB 2 (1 × front USB2.0; 1 × back USB2.0)
HDMI 1 (supports up to 4K resolution output)
VGA 1
Network 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
General Parameter
Power Supply 12V DC, 2A
Power Consumption < 10 W (HDD not included, idling)
Net Weight 0.81 kg (1.79 lb)
Gross Weight 1.41 kg (3.11 lb)
Product Dimensions 260 mm × 232.5 mm × 50.3 mm (10.24″ × 9.15″ × 1.98″) (W × L × H)
Package Dimensions 89 mm × 333 mm × 315 mm (3.50″ × 13.11″ × 12.40″) (W × L × H)
Operating Conditions –10 °C to +55 °C (+10 °F to +131 °F)
Storage Conditions 0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity 10℅~93℅
Storage Humidity 30%~85%
Operating Altitude 3000 m (9842.52 ft)
Installation Desktop mounted
Certifications CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B
